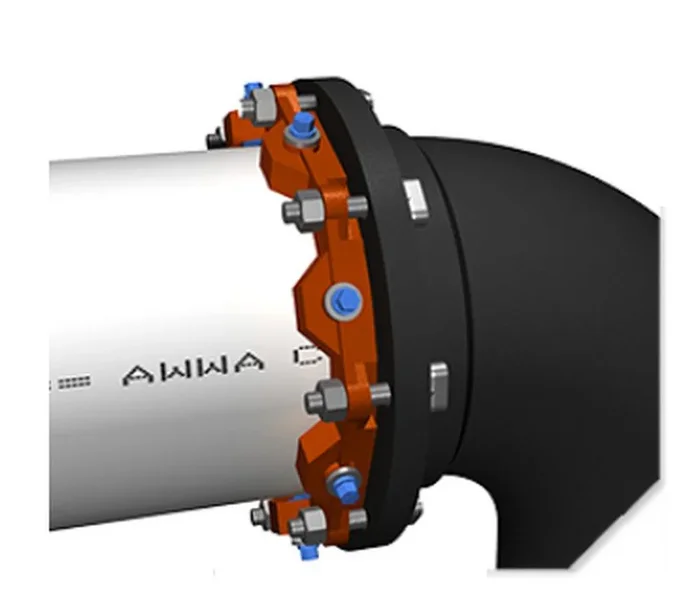

12 in. Joint Restraint for Plastic Pipe

12 in. Joint Restraint for Plastic Pipe

Il prezzo originale era: €211.05.Il prezzo attuale è: €50.99.

COD: vyiipqks91647 Categoria:

Descrizione

  • Sizes 3″ – 12″ consists of G2 design
  • Can be used on 4″- 48″ AWWA C900 PVC, 4″- 18″ AWWA C909 PVCO and AWWA C906 HDPE pipes along with 3″- 12″ IPS OD* ASTM D2241 PVC pipe
  • Sizes 4″- 12″ are listed with underwriters laboratories, approved by factory mutual research, and tested to and meets the requirements of ASTM F1674
  • Safety factor is twice (2:1) the standardized pressure rating listed
  • Standard gland color is coral red and is made from high strength ductile iron per ASTM A536 grade 65-45-12 and is compatible with all mechanical joints that conform to ANSI/AWWA C111/A21.11
  • Eliminates the need for tie rods and thrust blocks
  • Fewer wedges and lower wedge-bolt torque results in quicker and easier installation
  • Sizes 4″- 12″ uses a spacer that is easily removed when restraint is used on IPS Plastic pipe
  • Curved wedges reduce the amount of localized pipe deformation
  • The gland’s larger inside diameter allows restraint to be installed on pipe with more ovality
